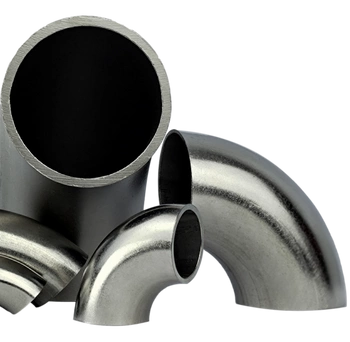

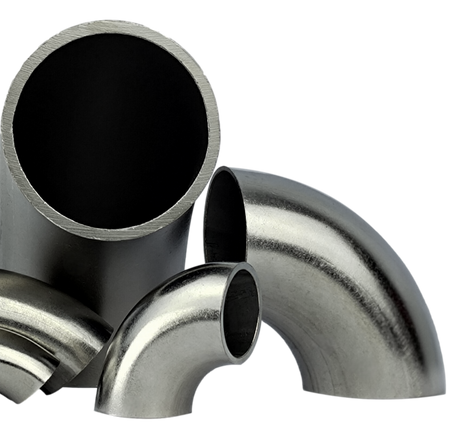

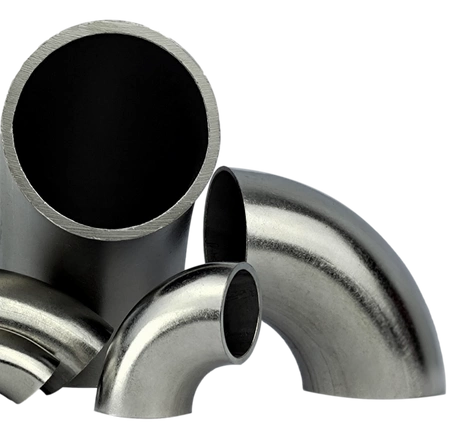

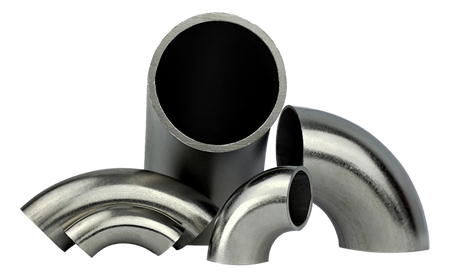

weldedElbow 219,1x2 R305 304L stainless steel 90°
Elbow 219,1x2 R305 304L stainless steel 90°
- Weld-in installation component made of stainless steel, intended for use in technical installations and pipelines.
Parameters
Steel grade
AISI 304 | 304LMore
| EN: | 1.4301 | 1.4307 |
| ZNAK: | X5CrNi18-10 | X2CrNi18-9 |
| PN: | 0H18N9 | - |
| ISO: | A2 | A2L |
Type:
with seam (welded)
Standard
EN10253-3
Weight (kg)
5.22

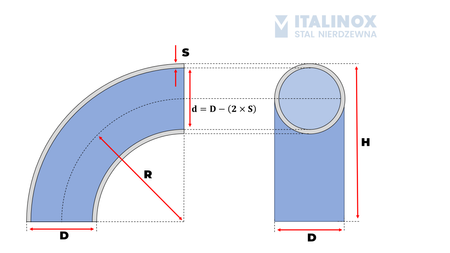

dimensions (mm)
Diameter (D)
219.1
Wall thickness (S)
2
Radius (R)
305
Height (H)
414.55
other dimension standards
DN
200
INCHES
8''
