Pressed collar 273x4 stainless 316L
Pressed collar 273x4 stainless 316L
Pressed collar 273x4 stainless 316L
Pressed collar 273x4 stainless 316L
material
type

Pressed collar 273x4 stainless 316L

  • material: 316L, TYPE 33, DN 10''/TYP 33 | 273 x 323
ikonymaterial#316type#33
dodanie_atestutak
Steel gradeAISI 316 | 316L
Price / szt.DiscountAvailability and ShippingBuy with pointsQuantity
165,00 zł incl. VAT
Discount

Buy with points
Sum of selected products:
(Discount %)
0
incl. VAT / 1szt.
/ 1szt.
You can also buy using:
Add to favorites
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.

Parameters

Symbol
411627340
Steel grade
AISI 316 | 316LMore
EN: 1.4401 1.4404
ZNAK: X5CrNiMo17-12-2 X2CrNiMo17-12-2
PN: 0H17N12M2T 00H17N14M2
ISO: A4 A4L



Type
TYP 33
Type:
wytłaczany
Weight (kg)
1.115
Standard
EN1092-1

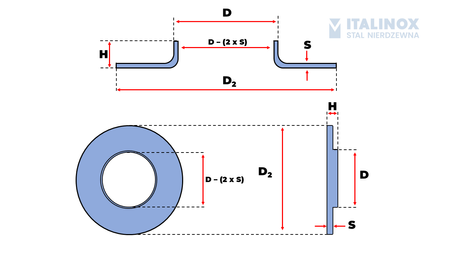

dimensions (mm)
Diameter (D)
273
Wall thickness (S)
4
Height (H)
18
Diameter (D2)
323
other dimension standards
DN
250
INCHES
10''

Description

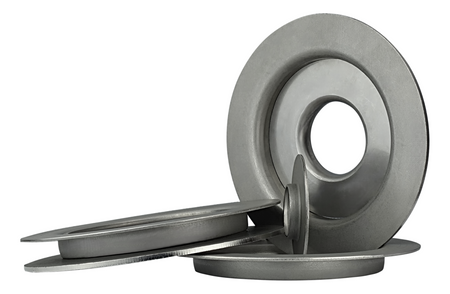

A 273x4 presed collar made of 316L stainless steel is a type of steel flange used in piping systems where high corrosion resistance and durability are essential. The edge of the pipe is flared outwards and welded to the flange. These flanges are made of stainless steel (e.g. AISI 304, AISI 316) and are characterized by a special manufacturing process that ensures their strength and tightness of connections. Ideal for water, chemical and food systems, pharmaceutical. Good for installations requiring periodic maintenance.

Most of our assortment meets the standards of double certification 304/304L or 316/316L which means that the material meets the requirements for stainless steel with a maximum carbon content of 0,08% for 304/316, as well as 304L/316L, where the maximum carbon content is reduced to 0,03% which affects their properties and applications. Please indicate in the order comments that you expect material in the 304L/316L standard, as there may be products certified only as 304.
