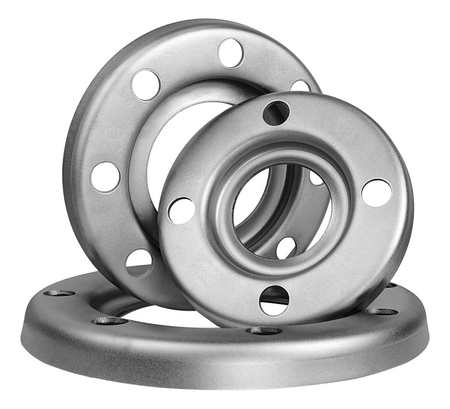

materialPressed flanges 114,3x3 stainless 316L PN10/16
Pressed flanges 114,3x3 stainless 316L PN10/16
- loose, material: 316L, PN10/16, DN 100 | 4''
Parameters
Symbol
421661001141
Steel grade
316L
Type:
przetłaczany
Diameter (D)
114.3
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
8
Weight (kg)
0.98

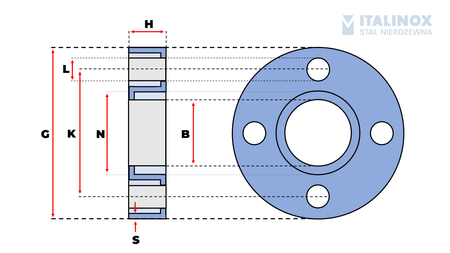

dimensions (mm)
Bore Diameter (B)
119
Pitch Circle Diameter (K)
180
Outside Diameter (D₂)
220
Bolt Hole Diameter (L)
18
h
22
N
141
Wall thickness (S)
3
nominal sizes
DN
100
INCHES
4''
