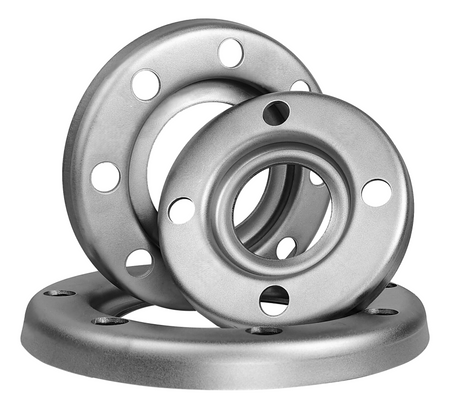

materialPressed flanges 139,7x4 stainless 316L PN10/16
Pressed flanges 139,7x4 stainless 316L PN10/16
- loose, material: 316L, PN10/16, DN 125 | 5''
Parameters
Symbol
421661251391
Steel grade
316L
Type:
przetłaczany
Diameter (D)
139.7
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
8
Weight (kg)
1.56

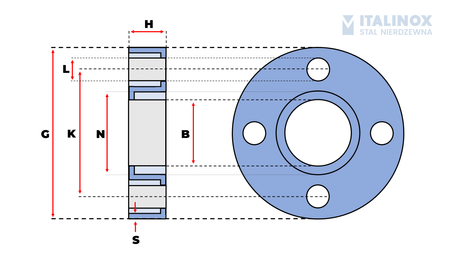

dimensions (mm)
Bore Diameter (B)
145
Pitch Circle Diameter (K)
210
Outside Diameter (D₂)
250
Bolt Hole Diameter (L)
18
h
22
N
168
Wall thickness (S)
4
inne normy wymiarowe
DN
125
INCHES
5''
