materialPressed flanges 168,3x4 stainless 316L PN10/16

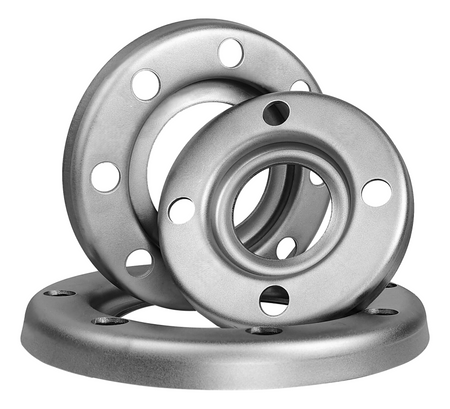

Pressed flanges 168,3x4 stainless 316L PN10/16
- loose, material: 316L, PN10/16, DN 150 | 6''
Parameters
Symbol
421661501681
Steel grade
316L
Type
przetłaczany
Diameter (D)
168.3
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
8
Weight (kg)
1.94

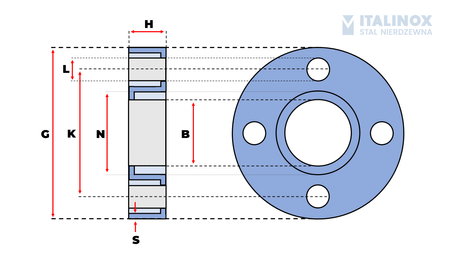

dimensions (mm)
Bore Diameter (B)
173
Pitch Circle Diameter (K)
240
Outside Diameter (D₂)
285
Bolt Hole Diameter (L)
22
h
26
N
192
Wall thickness (S)
4
nominal sizes
DN
150
INCHES
6''
