materialPressed flanges 219,1x5 stainless 304L PN10

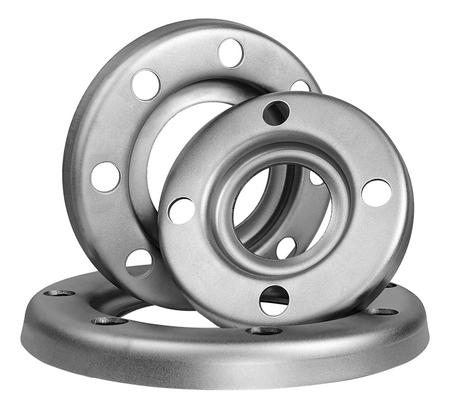

Pressed flanges 219,1x5 stainless 304L PN10
- loose, material: 304L, PN10, DN 200 | 8''
Parameters
Symbol
420462002190
Steel grade
304L
Type:
przetłaczany
Diameter (D)
219.1
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
8
Weight (kg)
3.25

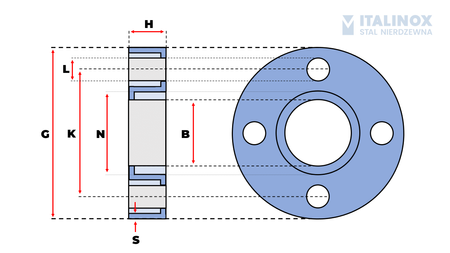

dimensions (mm)
Bore Diameter (B)
225
Pitch Circle Diameter (K)
295
Outside Diameter (D₂)
340
Bolt Hole Diameter (L)
22
h
28
N
245
Wall thickness (S)
5
nominal sizes
DN
200
INCHES
8''
