materialPressed flanges 219,1x5 stainless 304L PN16

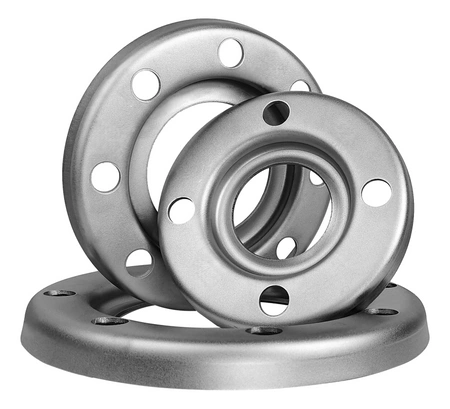

Pressed flanges 219,1x5 stainless 304L PN16
- loose, material: 304L, PN16, DN 200 | 8''
ikony
Steel grade304L
Parameters
Symbol
420462002196
Steel grade
304L
Type:
przetłaczany
Diameter (D)
219.1
Standard
zgodny z EN1092 | DIN2684
Pressure
PN16
Number of holes
12
Weight (kg)
3.16

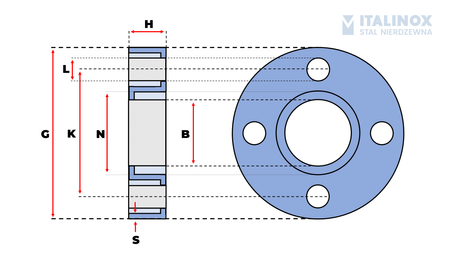

dimensions (mm)
Bore Diameter (B)
225
Pitch Circle Diameter (K)
295
Outside Diameter (D₂)
340
Bolt Hole Diameter (L)
22
h
28
N
245
Wall thickness (S)
6
inne normy wymiarowe
DN
200
INCHES
8''
