materialPressed flanges 26,9x3 stainless 304L PN16

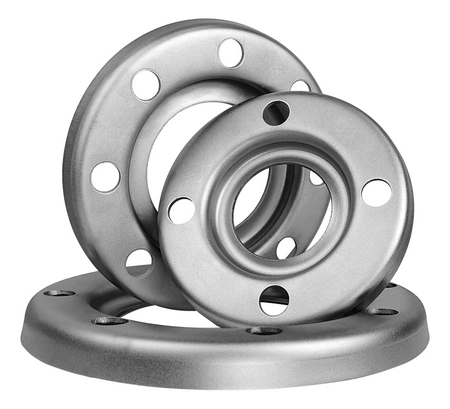

Pressed flanges 26,9x3 stainless 304L PN16
- loose, material: 304L, PN16, DN 20 | 3/4''
Parameters
Symbol
420460200266
Steel grade
304L
Type:
przetłaczany
Diameter (D)
26.9
Standard
zgodny z EN1092 | DIN2642
Pressure
PN16
Number of holes
4
Weight (kg)
0.29

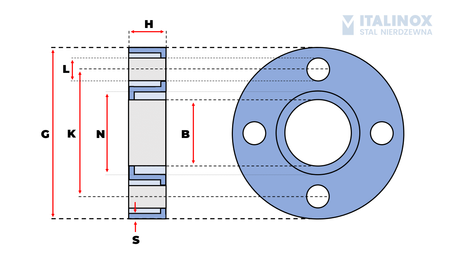

dimensions (mm)
Bore Diameter (B)
30
Pitch Circle Diameter (K)
75
Outside Diameter (D₂)
105
Bolt Hole Diameter (L)
13.5
h
14
N
48
Wall thickness (S)
3
inne normy wymiarowe
DN
20
INCHES
3/4''
