materialPressed flanges 273x5 stainless 304L PN16

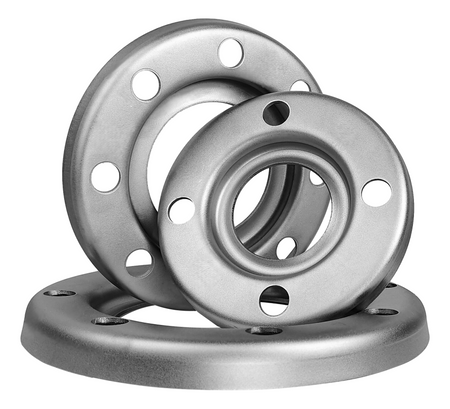

Pressed flanges 273x5 stainless 304L PN16
- loose, material: 304L, PN16, DN 250 | 10''
Parameters
Symbol
420462502736
Steel grade
304L
Type:
przetłaczany
Diameter (D)
273
Standard
zgodny z EN1092 | DIN2642
Pressure
PN16
Number of holes
12
Weight (kg)
4.04

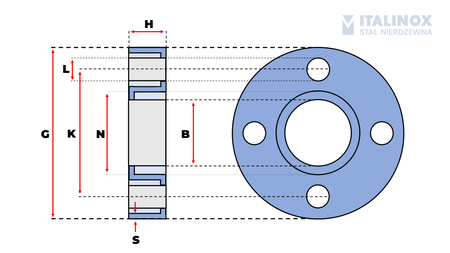

dimensions (mm)
Bore Diameter (B)
279
Pitch Circle Diameter (K)
355
Outside Diameter (D₂)
405
Bolt Hole Diameter (L)
26
h
33
N
300
Wall thickness (S)
6
inne normy wymiarowe
DN
250
INCHES
10''
