materialPressed flanges 273x5 stainless 316L PN10

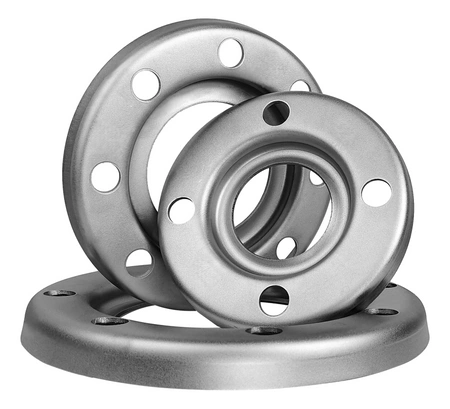

Pressed flanges 273x5 stainless 316L PN10
- loose, material: 316L, PN10, DN 250 | 10''
Parameters
Symbol
421662502730
Steel grade
316L
Type:
przetłaczany
Diameter (D)
273
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
12
Weight (kg)
3.98

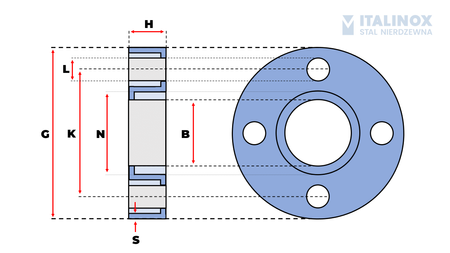

dimensions (mm)
Bore Diameter (B)
279
Pitch Circle Diameter (K)
350
Outside Diameter (D₂)
395
Bolt Hole Diameter (L)
22
h
31
N
295
Wall thickness (S)
5
nominal sizes
DN
250
INCHES
10''
