materialPressed flanges 323,9x5 stainless 304L PN16

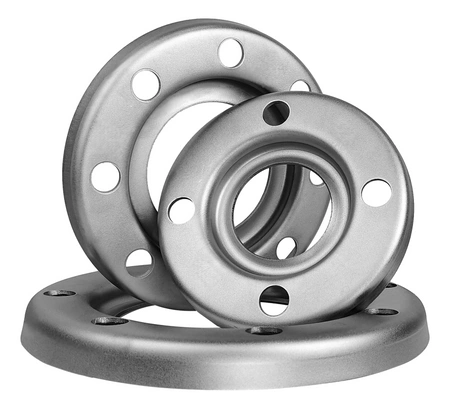

Pressed flanges 323,9x5 stainless 304L PN16
- loose, material: 304L, PN16, DN 300 | 12''
Parameters
Symbol
420463003236
Steel grade
304L
Type:
przetłaczany
Diameter (D)
323.9
Standard
zgodny z EN1092 | DIN2642
Pressure
PN16
Number of holes
12
Weight (kg)
4.82

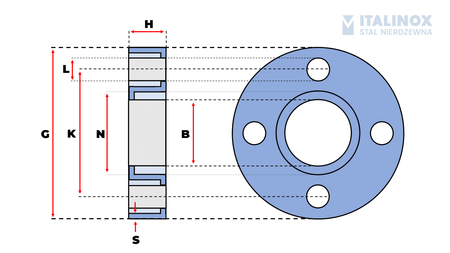

dimensions (mm)
Bore Diameter (B)
329
Pitch Circle Diameter (K)
410
Outside Diameter (D₂)
460
Bolt Hole Diameter (L)
26
h
36
N
352
Wall thickness (S)
6
inne normy wymiarowe
DN
300
INCHES
12''
