materialPressed flanges 323,9x5 stainless 316L PN10

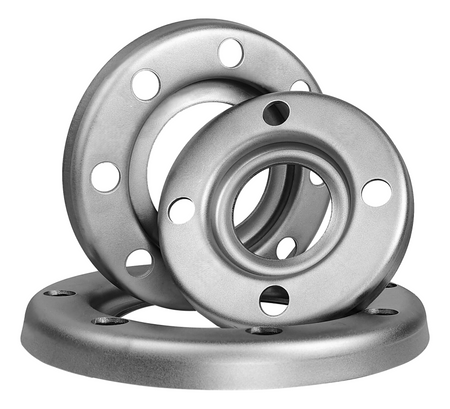

Pressed flanges 323,9x5 stainless 316L PN10
- loose, material: 316L, PN10, DN 300 | 12''
Parameters
Symbol
421663003230
Steel grade
316L
Type:
przetłaczany
Diameter (D)
323.9
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
12
Weight (kg)
4.86

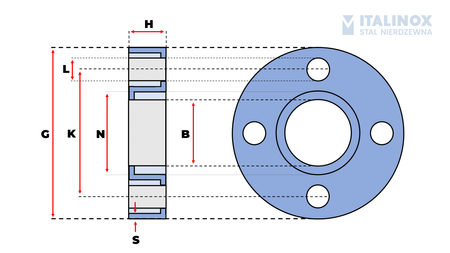

dimensions (mm)
Bore Diameter (B)
329
Pitch Circle Diameter (K)
400
Outside Diameter (D₂)
445
Bolt Hole Diameter (L)
22
h
34
N
345
Wall thickness (S)
5
nominal sizes
DN
300
INCHES
12''
