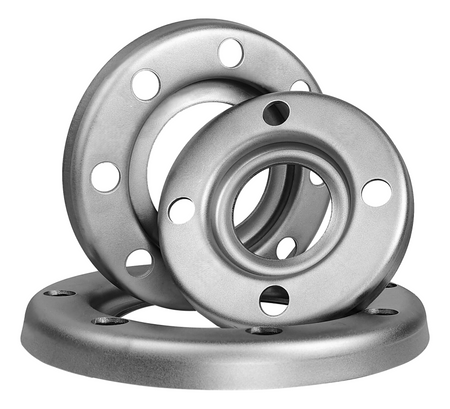

materialPressed flanges 406,4x6 stainless 304L PN10
Pressed flanges 406,4x6 stainless 304L PN10
- loose, material: 304L, PN10, DN 400 | 16''
Parameters
Symbol
420464004060
Steel grade
304L
Type:
przetłaczany
Diameter (D)
406.4
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
16
Weight (kg)
8.63

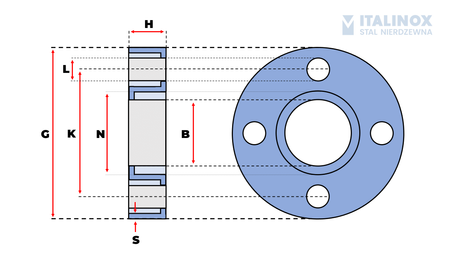

dimensions (mm)
Bore Diameter (B)
413
Pitch Circle Diameter (K)
515
Outside Diameter (D₂)
565
Bolt Hole Diameter (L)
26
h
38
N
443
Wall thickness (S)
6
nominal sizes
DN
400
INCHES
16''
