materialPressed flanges 42,4x3 stainless 304L PN16

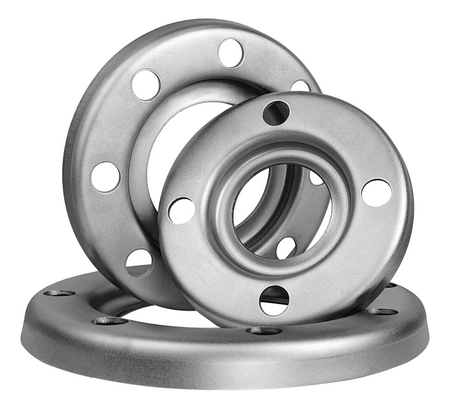

Pressed flanges 42,4x3 stainless 304L PN16
- loose, material: 304L, PN16, DN 32 | 1 1/4''
Parameters
Symbol
420460320426
Steel grade
304L
Type
przetłaczany
Diameter (D)
42.4
Standard
zgodny z EN1092 | DIN2642
Pressure
PN16
Number of holes
4
Weight (kg)
0.48

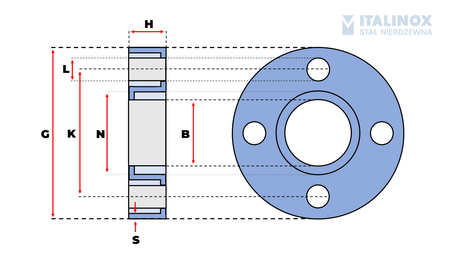

dimensions (mm)
Bore Diameter (B)
46
Pitch Circle Diameter (K)
100
Outside Diameter (D₂)
140
Bolt Hole Diameter (L)
17.5
h
16
N
68
Wall thickness (S)
3
nominal sizes
DN
32
INCHES
1 1/4''
