materialPressed flanges 457,2x8 stainless 304L PN10

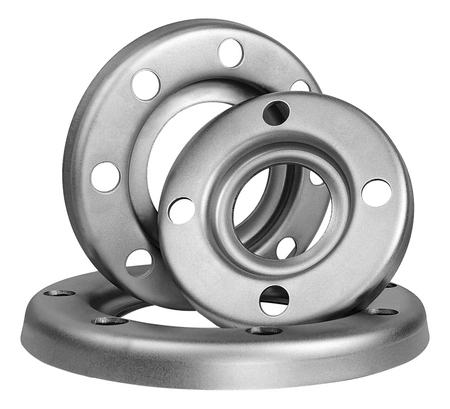

Pressed flanges 457,2x8 stainless 304L PN10
- loose, material: 304L, PN10, DN 450 | 18''
Parameters
Symbol
420464504570
Steel grade
304L
Type:
przetłaczany
Diameter (D)
457.2
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
20
Weight (kg)
13.86

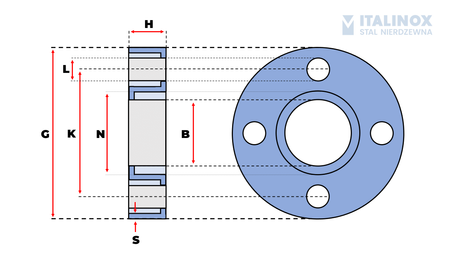

dimensions (mm)
Bore Diameter (B)
465
Pitch Circle Diameter (K)
565
Outside Diameter (D₂)
615
Bolt Hole Diameter (L)
26
h
41
N
495
Wall thickness (S)
8
inne normy wymiarowe
DN
450
INCHES
18''
Not confirmed by purchase
