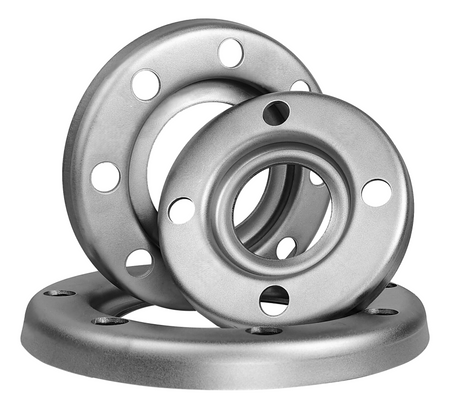

materialPressed flanges 508x8 stainless 316L PN10
Pressed flanges 508x8 stainless 316L PN10
- loose, material: 316L, PN10, DN 500 | 20''
Parameters
Symbol
421665005080
Steel grade
316L
Type:
przetłaczany
Diameter (D)
508
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10
Number of holes
20
Weight (kg)
15.5
dimensions (mm)
Bore Diameter (B)
517
Pitch Circle Diameter (K)
620
Outside Diameter (D₂)
670
Bolt Hole Diameter (L)
26
h
41
N
560
Wall thickness (S)
8
nominal sizes
DN
500
INCHES
20''
