materialPressed flanges 60,3x3 stainless 316L PN10/16

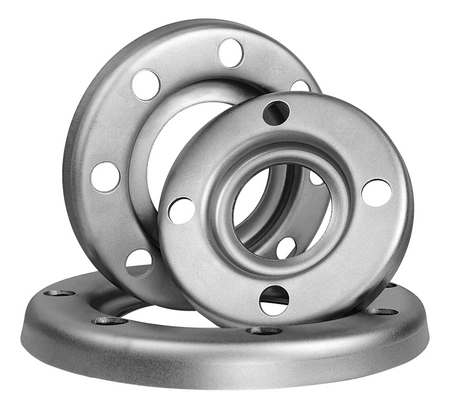

Pressed flanges 60,3x3 stainless 316L PN10/16
- loose, material: 316L, PN10/16, DN 50 | 2''
Parameters
Symbol
421660500601
Steel grade
316L
Type:
przetłaczany
Diameter (D)
60.3
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
4
Weight (kg)
0.57

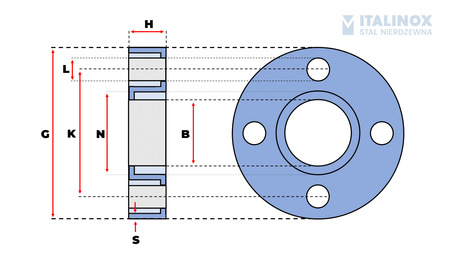

dimensions (mm)
Bore Diameter (B)
65
Pitch Circle Diameter (K)
125
Outside Diameter (D₂)
165
Bolt Hole Diameter (L)
18
h
19.5
N
91
Wall thickness (S)
3
inne normy wymiarowe
DN
50
INCHES
2''
