materialPressed flanges 76,1x3 stainless 304L PN10/16

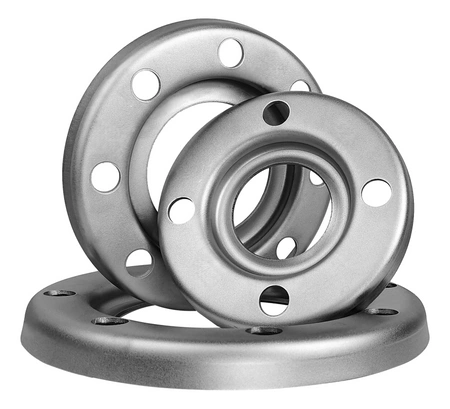

Pressed flanges 76,1x3 stainless 304L PN10/16
- loose, material: 304L, PN10/16, DN 65 | 2 1/2''
Parameters
Symbol
420460650761
Steel grade
304L
Type:
przetłaczany
Diameter (D)
76.1
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
4
Weight (kg)
0.83

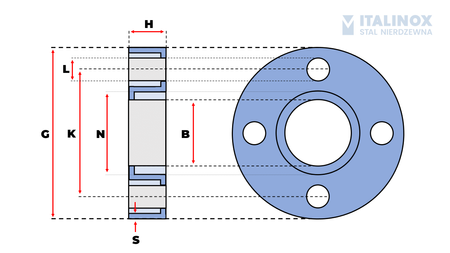

dimensions (mm)
Bore Diameter (B)
81
Pitch Circle Diameter (K)
145
Outside Diameter (D₂)
185
Bolt Hole Diameter (L)
18
h
21.5
N
108
Wall thickness (S)
3
nominal sizes
DN
65
INCHES
2 1/2''
