materialPressed flanges 88,9x3 stainless 304L PN10/16

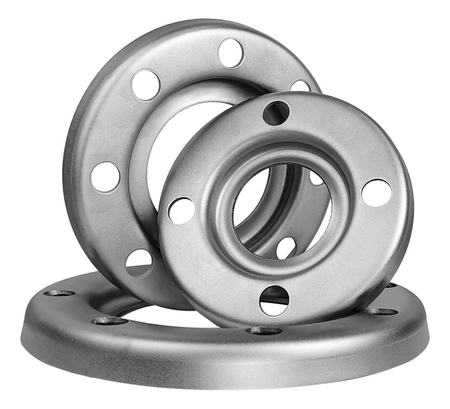

Pressed flanges 88,9x3 stainless 304L PN10/16
- loose, material: 304L, PN10/16, DN 80 | 3''
Parameters
Symbol
420460800881
Steel grade
304L
Type
przetłaczany
Diameter (D)
88.9
Standard
zgodny z EN1092 | DIN2642
Pressure
PN10/16
Number of holes
8
Weight (kg)
0.88

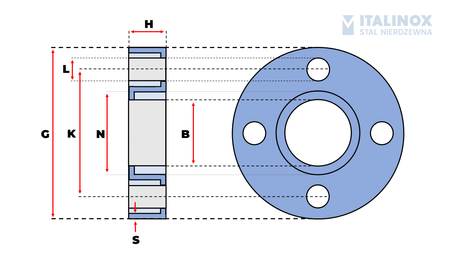

dimensions (mm)
Bore Diameter (B)
94
Pitch Circle Diameter (K)
160
Outside Diameter (D₂)
200
Bolt Hole Diameter (L)
18
h
21.5
N
123
Wall thickness (S)
3
nominal sizes
DN
80
INCHES
3''
